Product range

GasBank refillable cylinders

Two materials, two valve systems, four sizes. Every cylinder has an automatic 80% shut-off and pressure relief valve.

Composite range

Single valve

Composite Single 10 kg

SKU 400276

Ø × H: 300 × 580 mm
Tare: 5.40 kg
Water cap.: 24.4 L
80% fill: 19.52 L
Inlet: G.12 [W21.8 x 1/14 lh]

Single valve

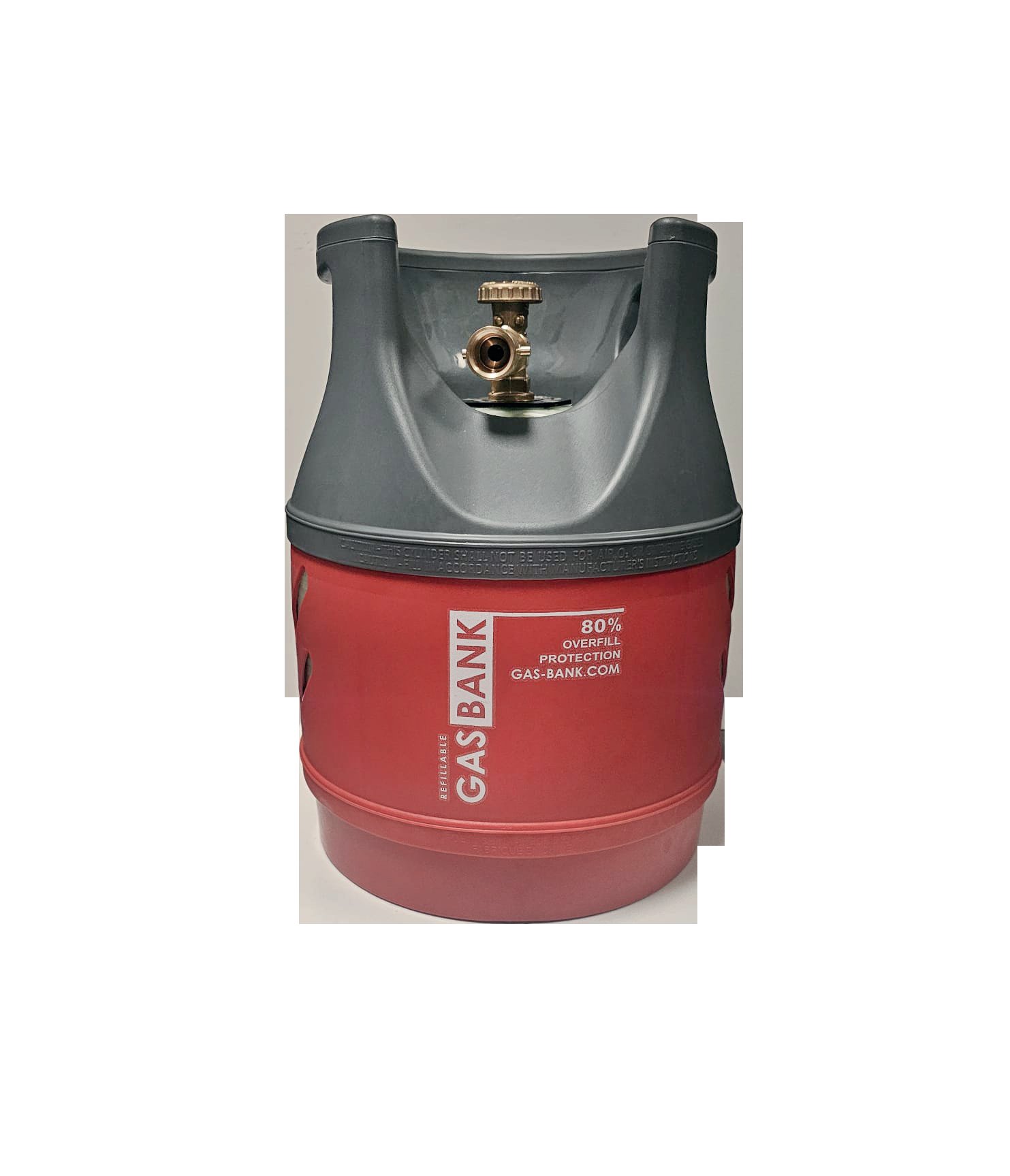

Composite Single 5.5 kg

SKU 400306

Ø × H: 300 × 410 mm
Tare: 4.50 kg
Water cap.: 13.5 L
80% fill: 10.50 L
Inlet: G.12 [W21.8 x 1/14 lh]

Duo valve

Composite Duo 10 kg

SKU 400299

Ø × H: 300 × 580 mm
Tare: 5.40 kg
Water cap.: 24.4 L
80% fill: 19.52 L
Inlet: 3/4 UNF [JIC]

Duo valve

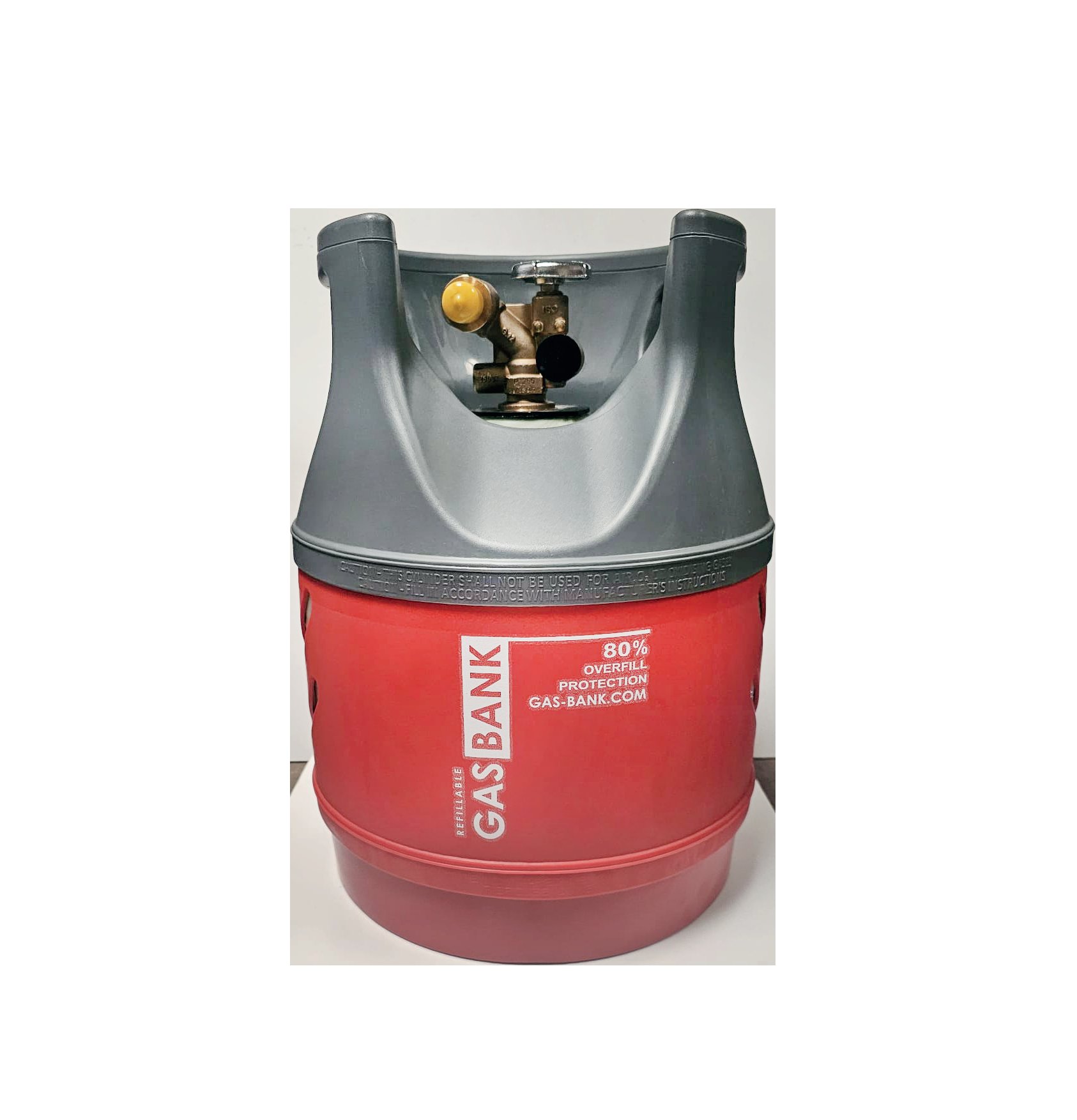

Composite Duo 5.5 kg

SKU 400308

Ø × H: 300 × 410 mm
Tare: 4.50 kg
Water cap.: 13.5 L
80% fill: 10.50 L
Inlet: 3/4 UNF [JIC]

Specification	Composite Single 10 kgSKU 400276	Composite Single 5.5 kgSKU 400306	Composite Duo 10 kgSKU 400299	Composite Duo 5.5 kgSKU 400308
Size	10 kg	5.5 kg	10 kg	5.5 kg
Type	Single	Single	Duo	Duo
Diameter [mm]	300	300	300	300
Height [mm]	580	410	580	410
Tare [kg]	5.40	4.50	5.40	4.50
Water capacity [L]	24.4	13.5	24.4	13.5
80% capacity [L]	19.52	10.50	19.52	10.50
Inlet	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]	3/4 UNF [JIC]	3/4 UNF [JIC]
Outlet	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]
Automatic 80% shut-off valve	Yes
Pressure relief valve	Yes
Material	PET composite

Light Steel range [LS]

Single valve

LS Single 11 kg

SKU 400276

Ø × H: 300 × 587 mm
Tare: 6.95 kg
Water cap.: 26.2 L
80% fill: 21 L
Inlet: G.12 [W21.8 x 1/14 lh]

Single valve

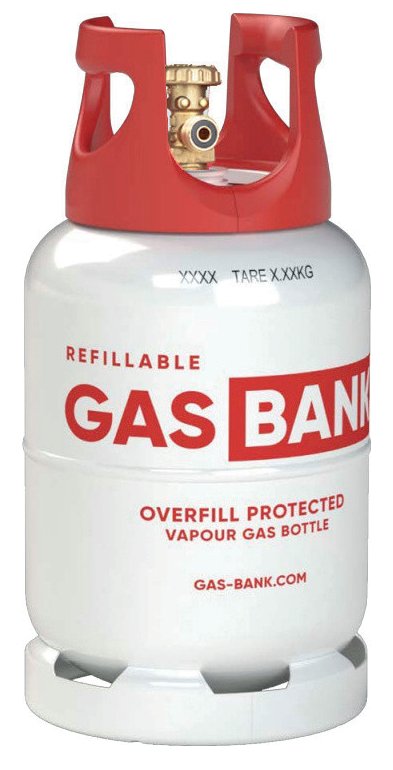

SLIM LS Single 6 kg

SKU 400306

Ø × H: 246 × 490 mm
Tare: 4.50 kg
Water cap.: 14.6 L
80% fill: 11.7 L
Inlet: G.12 [W21.8 x 1/14 lh]

Duo valve

LS Duo 11 kg

SKU 400299

Ø × H: 300 × 587 mm
Tare: 6.95 kg
Water cap.: 26.2 L
80% fill: 21 L
Inlet: 3/4 UNF [JIC]

Duo valve

SLIM LS Duo 6 kg

SKU 400308

Ø × H: 246 × 490 mm
Tare: 5 kg
Water cap.: 14.6 L
80% fill: 11.7 L
Inlet: 3/4 UNF [JIC]

Specification	LS Single 11 kgSKU 400276	SLIM LS Single 6 kgSKU 400306	LS Duo 11 kgSKU 400299	SLIM LS Duo 6 kgSKU 400308
Size	11 kg	6 kg	11 kg	6 kg
Type	Single	Single	Duo	Duo
Diameter [mm]	300	246	300	246
Height [mm]	587	490	587	490
Tare [kg]	6.95	4.50	6.95	5
Water capacity [L]	26.2	14.6	26.2	14.6
80% capacity [L]	21	11.7	21	11.7
Inlet	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]	3/4 UNF [JIC]	3/4 UNF [JIC]
Outlet	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]	G.12 [W21.8 x 1/14 lh]
Automatic 80% shut-off valve	Yes
Pressure relief valve	Yes
Material	Light steel (DUPLEX)

Features & technology

Ultra-lightweight DUPLEX steel

Crafted from super light, high-strength dual-phase DUPLEX steel.

C5-M marine-grade coating

Anti-corrosion finish protects against harsh road conditions, salt air and rust.

Ultra-lightweight composite

Advanced high-strength composite — up to 40% lighter than standard heavy cylinders.

Rust-free, non-corrosive casing

Durable composite construction with zero risk of rust from moisture or salt air.

Built-in Pressure Relief Valve

Certified PRV prevents internal over-pressurisation during travel and refilling.

DUO valve system

Separate inlet and outlet — connect an external fill point without disconnecting the regulator.

Integrated 80% OPD safety valve

Automatic overfill protection stops filling at 80% for legal refilling across the UK & Europe.
